FS-75x55 – Form Series Downpipes

75mm x 55m rectangular downpipe.



Medium capacity rectangle downpipe option for your rainwater system.

The FS-75x55 downpipe provides a stylish rectangular shape to your home’s downpipes, that can be colour matched to your spouting. This product can be used for water collection, but can not be used where water tank head height is higher than top of drain. Use Ezi-Flo Series downpipe where charged downpipes are required.

Specifier Notes

Downpipe capacity, both in size and number, determine the effectiveness of any rainwater system. Downpipes should be distributed evenly around the rainwater system and their design and specification should allow for maximum rainfall situations.

All Continuous bends are uniquely designed with male and female ends so as to allow the most efficient flow of water.  A typical bend is at 95°, but can be hand made to differing angles if required.




Want to know more?
Give us a call:

0800 501 993

Scroll down to see images of Continuous downpipes on a range of Kiwi homes, along with colour and finish options and downloadable technical files.

Quick Reference Data

FS-75x55 - Form Series Downpipe

Capacity

3890mm2

Inside
Diameter

73.8mm x 52.8mm

Outside
Diameter

75mm x 54mm

Finish
Availability

CG Range
Designer Range
Natural Copper

Material
Availability

MagnaFlow
Copper

Bracket
Material

Aluminium
MagnaFlow
Brass or Copper

Bracket
Types

Adjustable Clamp
Fixed Clip*

*Fixed Clip not available in Designer Range finish.

FS-75x55 Downpipe Colour & Finish Options

Our FS-75x55 downpipes are available in the following finish & colour options. (Click for more information.)



CG Range – Colours

The “CG Range” features our most popular 15 colours, all manufactured from New Zealand made, MagnaFlow pre-painted steel. Colour options for the CG Range are shown below.

Please note, colours shown below are as accurate as we can make them via a digital rendering, but actual colours may vary. For exact colour samples, please get in touch with our team.

FS-75x55 Downpipes Image Gallery (CG & Designer Range)

Technical Information & Downloads

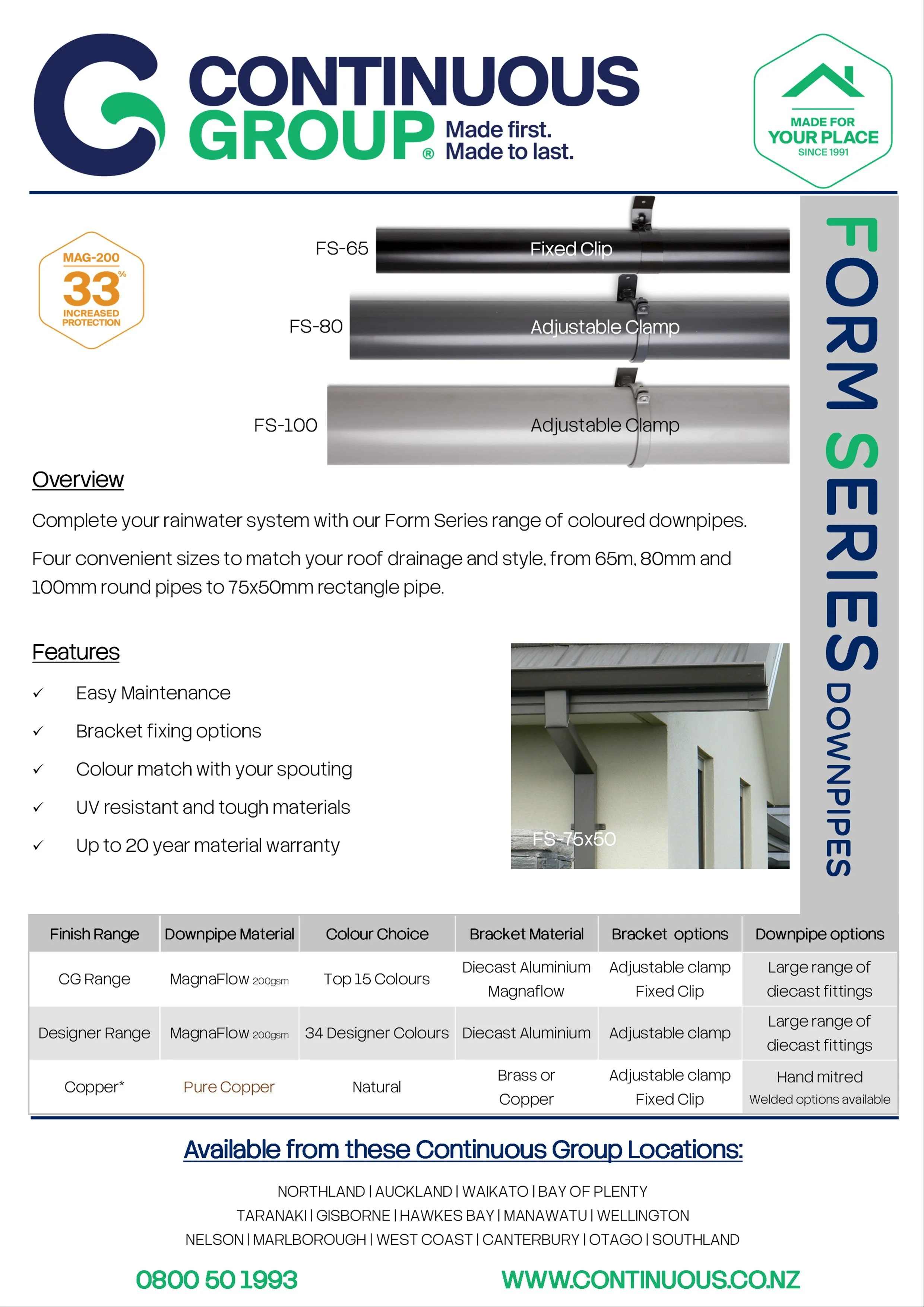

Form Series Downpipe BrochureClick to view and download.

Form Series
Downpipe Brochure

Click to view and download.

Form Series Specification SheetClick to view and download

Form Series
Specification Sheet

Click to view and download

Form Series Combined Brochure & Spec SheetClick to view and download.

Form Series Combined
Brochure & Spec Sheet

Click to view and download.
