Cube 175 – Commercial Series Spouting
Box style commercial spouting.
Box or square shaped commercial spouting profile

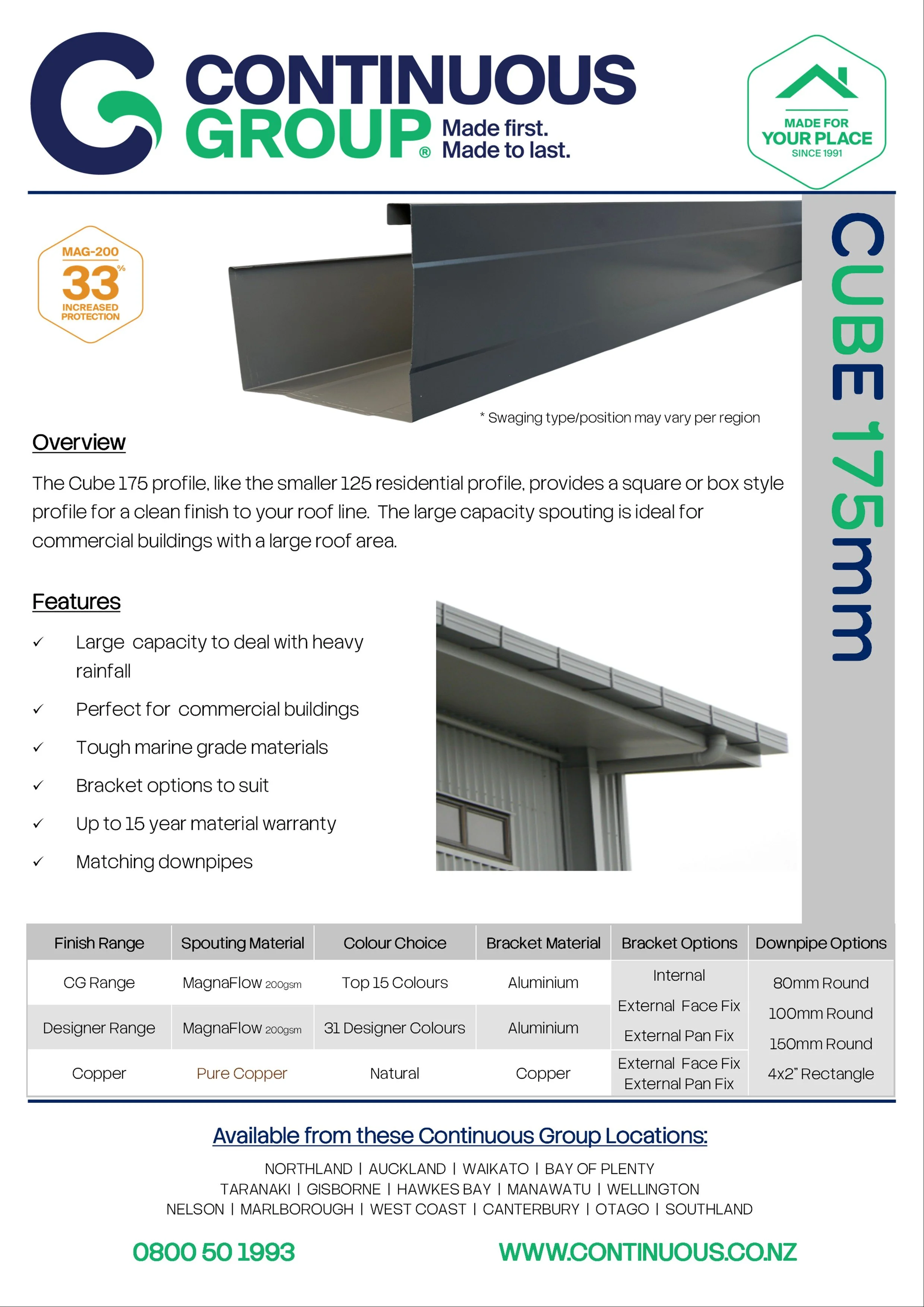

The Cube 175 profile, like the smaller 125 residential profile, provides a square or box styled profile for a clean finish to your roof line. This larger capacity spouting is ideal for commercial buildings with a larger roof area.
Specifier Notes
“Pan Fix” External bracket is available to work with metal profiled claddings. Please specify this when ordering
Scroll down to see images of Cube 175 Continuous spouting on a range of Kiwi homes, along with colour and finish options and downloadable technical files.

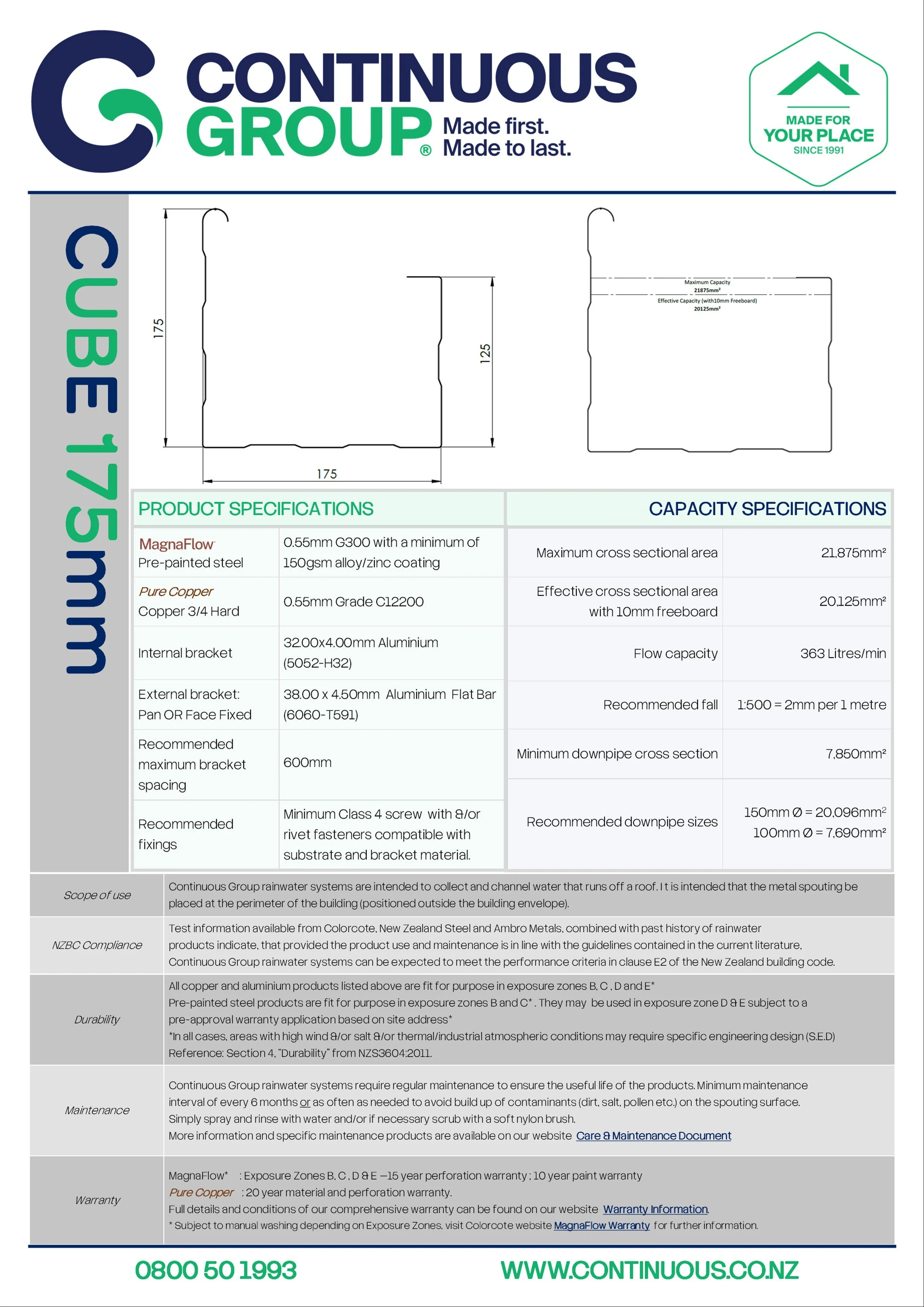

Profile Measurements
Capacity Calculations
External Aluminium Bracket
Quick Reference Data
Cube 175 - Box Style Spouting
Cross Section
Capacity
21,800mm²
19,200mm² (With 15mm freeboard)
Downpipe
Size Options
65mm Round
80mm Round
100mm Round
150mm Round
75x55mm Rectangle
100x55mm Rectangle
Finish
Availability
CG Range
Designer Range
Material
Availability
MagnaFlow
Bracket
Types
Internal
External
External Pan Fix
Cube 175 Spouting Colour & Finish Options
Our Cube 175 spouting is available in the following colour and finish options. (Click for more information.)
CG Range – Colours
The “CG Range” features our most popular 15 colours, all manufactured from New Zealand made, MagnaFlow pre-painted steel. Colour options for the CG Range are shown below.
Please note, colours shown below are as accurate as we can make them via a digital rendering, but actual colours may vary. For exact colour samples, please get in touch with our team.
