FS-80 installed
Form Series

FS-80

80mm diameter round downpipe.

FS-80

The reliable downpipe option for your rainwater system.

The FS-80 downpipe provides increased water capacity for a complete rainwater installation you can trust. Part of our Form Series, the FS-80 is a roll-formed lock seamed downpipe. This product can be used for water collection, but can not be used where water tank head height is higher than top of drain. Use Ezi-Flo Series downpipe where charged downpipes are required.

Downpipe capacity, both in size and number, determine the effectiveness of any rainwater system.

Downpipes should be distributed evenly around the rainwater system and their design and specification should allow for maximum rainfall situations.

All Continuous bends are uniquely designed with male and female ends so as to allow the most efficient flow of water.

FS-80 on site
Product detail

FS-80 downpipe & fittings

FS-80 80mm downpipe
80mm downpipeRoll-formed, lock-seamed
FS-80 T-junction
T-junction
FS-80 Munzing ring
Munzing ring
FS-80 Downpipe clip
Downpipe clip
FS-80 95° bend
95° bend
FS-80 30° bend
30° bend
Quick reference

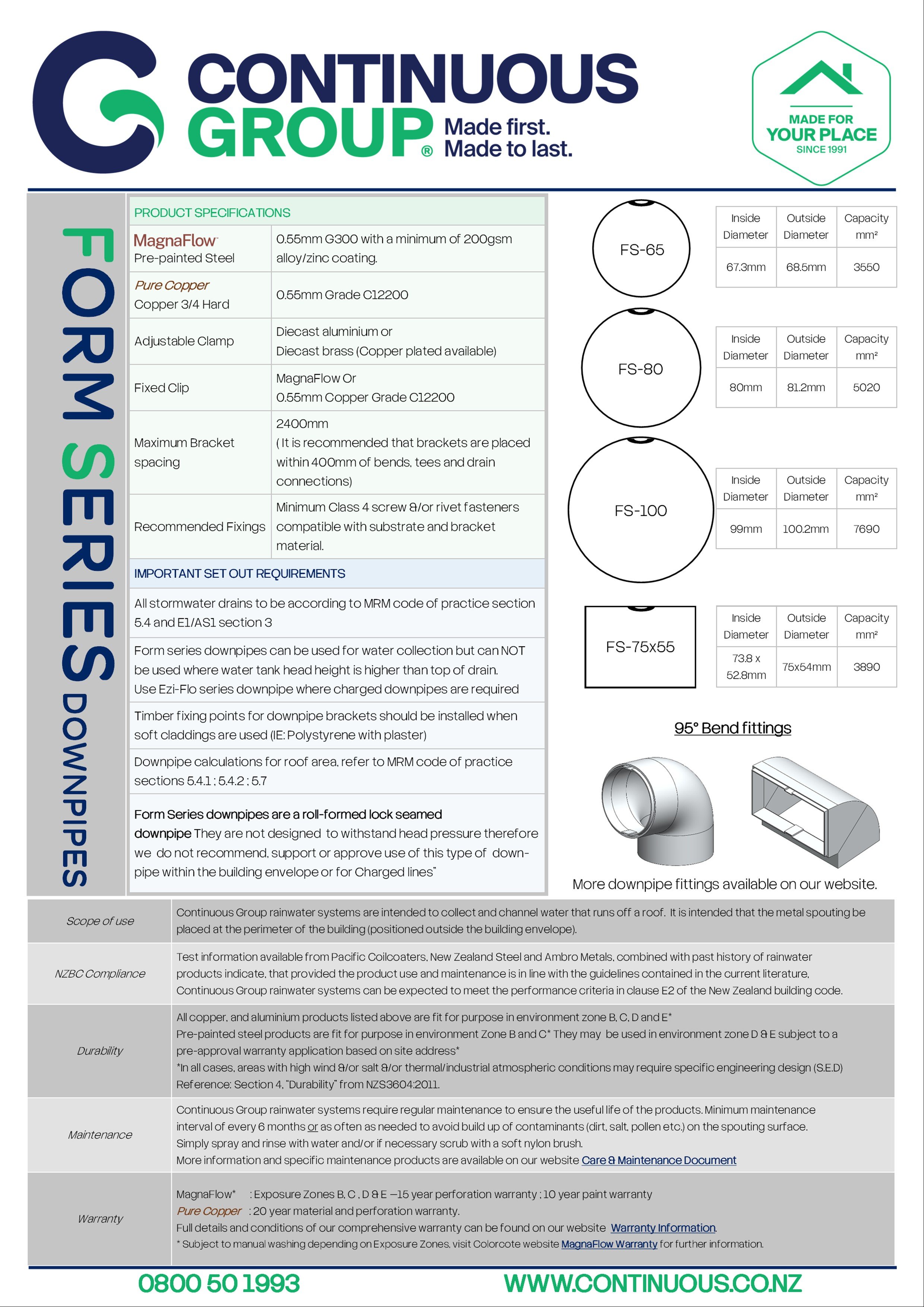

FS-80 specifications

SeriesForm Series
Capacity5,020mm²
Inside Diameter80mm
Outside Diameter81.2mm
Finish AvailabilityCG Range, Designer Range, Specialty Range, Natural Copper
Material AvailabilityMagnaFlow (Mag-200), ColorSteel Maxam (Maxam-150), Copper
Bracket MaterialPrepainted Steel, Diecast Aluminium, Copper
Bracket TypesAdjustable Clamp; Fixed Clip*
Warranty15-year perforation, 10-year paint (20-year material and perforation on copper)
MagnaFlow (MAG-200) prepainted steel

Nine corrosion-resistant layers, a 200 g/m² metallic coating and a 33% thicker, self healing protective coating, so it lasts longer. Made in New Zealand.

Colours & finishes

Available colours for FS-80

FS-80 is available in the following ranges. Colours shown are indicative only and can vary on screen.

CG Range

Our 17 most popular colours, in New Zealand-made MagnaFlow prepainted steel.
Black
Grey Friars
Gull Grey
Horoeka
Ironsand
Karaka
Lignite
New Denim Blue
Pacific White
Permanent Green
Pioneer Red
Sandstone Grey
Scoria
Slate
Thunder Grey
Titania
Windsor Grey

Designer Range

25 additional colours, including low gloss variants, on MagnaFlow or Maxam prepainted steel.
Black LG
Bone White
Cloud
Desert Sand
Ebony
Ebony LG
Flaxpod
Flaxpod LG
Grey Flannel
Grey Friars LG
Ironsand LG
Karaka LG
Lichen
Mist Green
Off White
Pacific Cloud
Pebble
Rivergum
Sandbar
Sandscape
Sandstone Grey LG
Smooth Cream
Threadbow White
TuiTuft
Windsor Grey LG

Specialty Range

20 specialty colours, including brights, mattes and MagnaFlow Plus (PVDF paint) finishes.
Flaxpod Matte
Forest Fern
Grey Friars PVDF Paint
Gull Grey PVDF Paint
Ironsand PVDF Paint
Lazerite Blue
Metallic Gunmetal
Metallic Silver
Mudstone
Nimbus
Poppy
Seabird
Slate Blue LG
Smokey
Stonepeak Matte
Storm Blue
Terracotta
Tidaldrift Matte
Titania PVDF Paint
Weathered Copper

Natural Copper

Pure copper that ages to a natural patina, backed by a 20-year warranty.
