Quartz Plus – Residential Series Spouting
Large Modern Residences, High-Pitch Roofs, High-Rainfall Areas
Quartz Plus: Defined Lines, Amplified Performance
When the sleek aesthetic of modern architecture meets the demands of a high-volume catchment area, The Quartz Plus is the answer. It retains the exact geometric precision and "picture frame" styling of our most popular profile but is scaled up to provide 50% more water capacity.
Key Features:
50% Greater Capacity: Specifically engineered with deeper and wider dimensions to manage heavy runoff and intense downpours with ease.
Proportional Scaling: Perfectly maintains the clean, sharp angles of the original Quartz, ensuring a consistent look on larger-scale residential or light commercial buildings.
Architectural Definition: Like its smaller sibling, it provides a bold, structured border that frames the home, but with a more substantial presence on the roofline.
Discreet Strength: Despite its larger size, it maintains a streamlined appearance, especially when paired with internal brackets for a smooth, uninterrupted face.
More Volume. Same Modern Soul. Upgrade to the Quartz Plus for total peace of mind during the heaviest storms.
Scroll down to see images of Quartz Plus on a range of Kiwi homes, along with colour and finish options and downloadable technical files.
Want to know more?
Give us a call:
Profile Detail
External Bracket
Internal Bracket
Quick Reference Data
QUARTZ PLUS - 185mm Quarter Round Spouting
Cross Section
Capacity
11,215mm²
9,575mm² (With 10mm freeboard)
Downpipe
Size Options
65mm Round
80mm Round
100mm Round
75x55mm Rectangle
100x55mm Rectangle
Finish
Availability
CG Range
Designer Range
Natural Copper
Material
Availability
MagnaFlow
Copper
Bracket
Types
Internal
External
Protection
Options
Snowhooks
Snowstraps
Mesh Screen
Ezi-Lok Screen
Quartz Spouting Colour & Finish Options
Our quartz spouting is available in the following finish and colour options. (Click for more information.)
CG Range – Colours
The “CG Range” features our most popular 17 colours, all manufactured from New Zealand made, MagnaFlow pre-painted steel. Colour options for the CG Range are shown below.
Please note, colours shown below are as accurate as we can make them via a digital rendering, but actual colours may vary. For exact colour samples, please get in touch with our team.

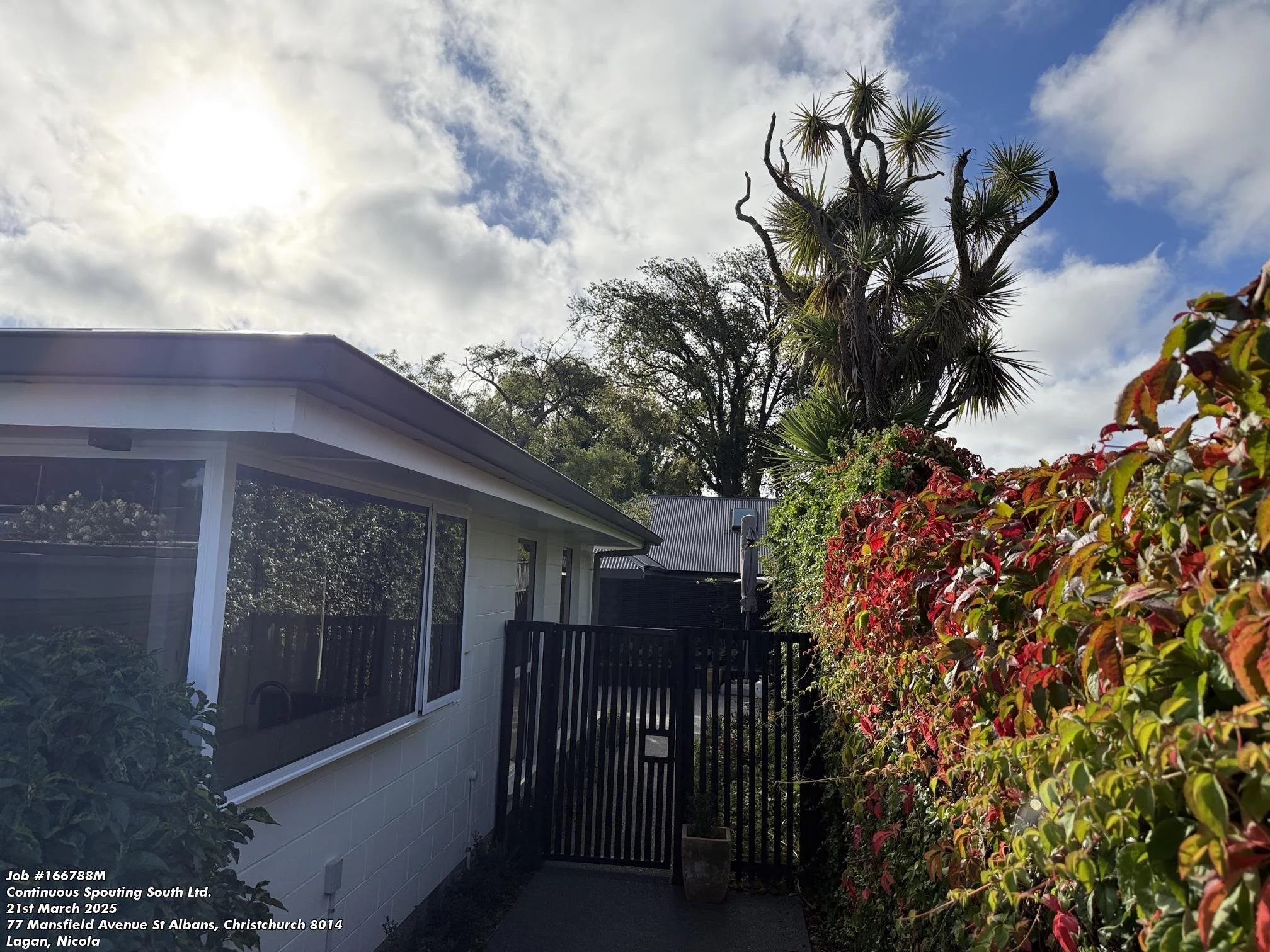

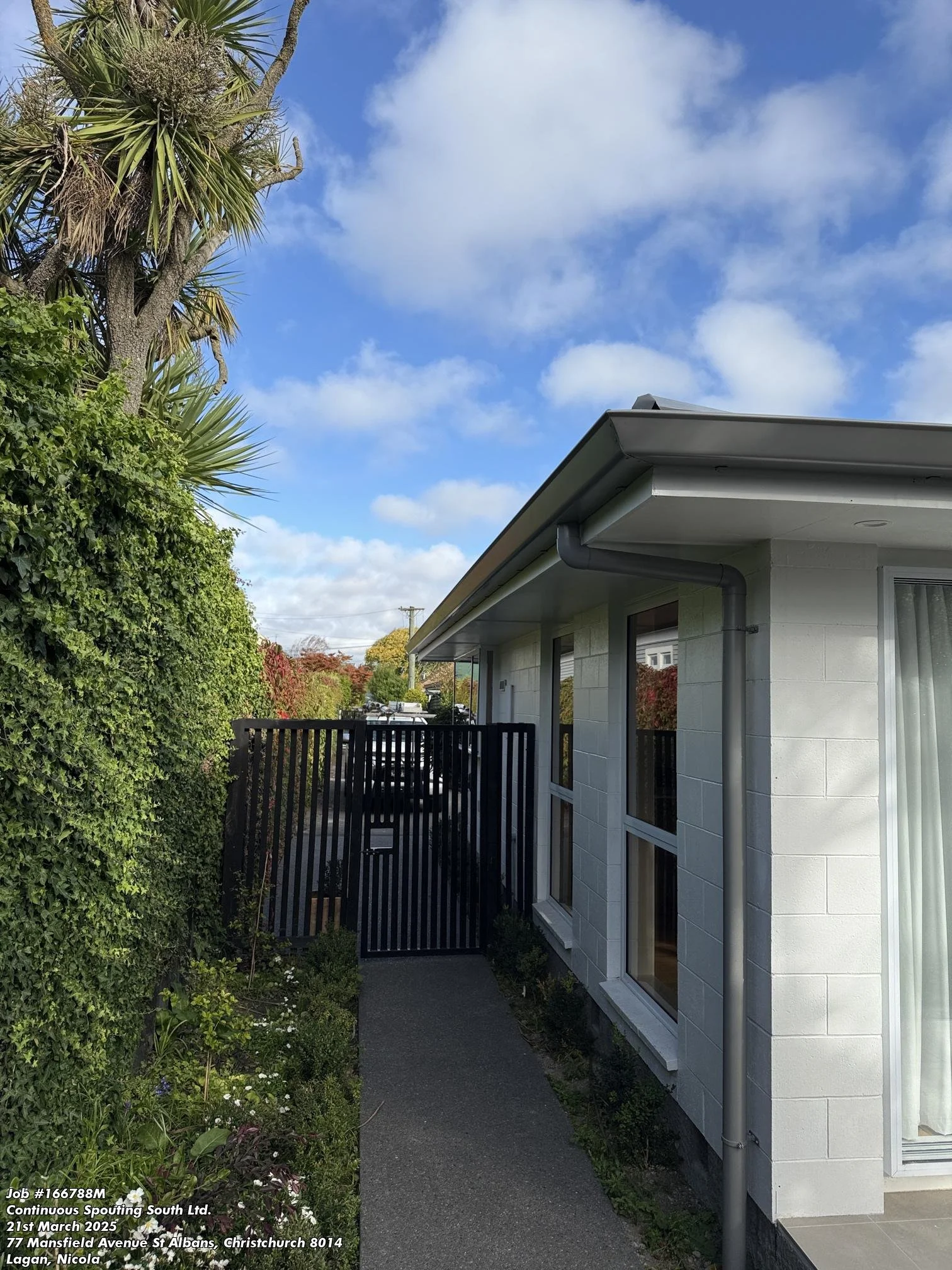

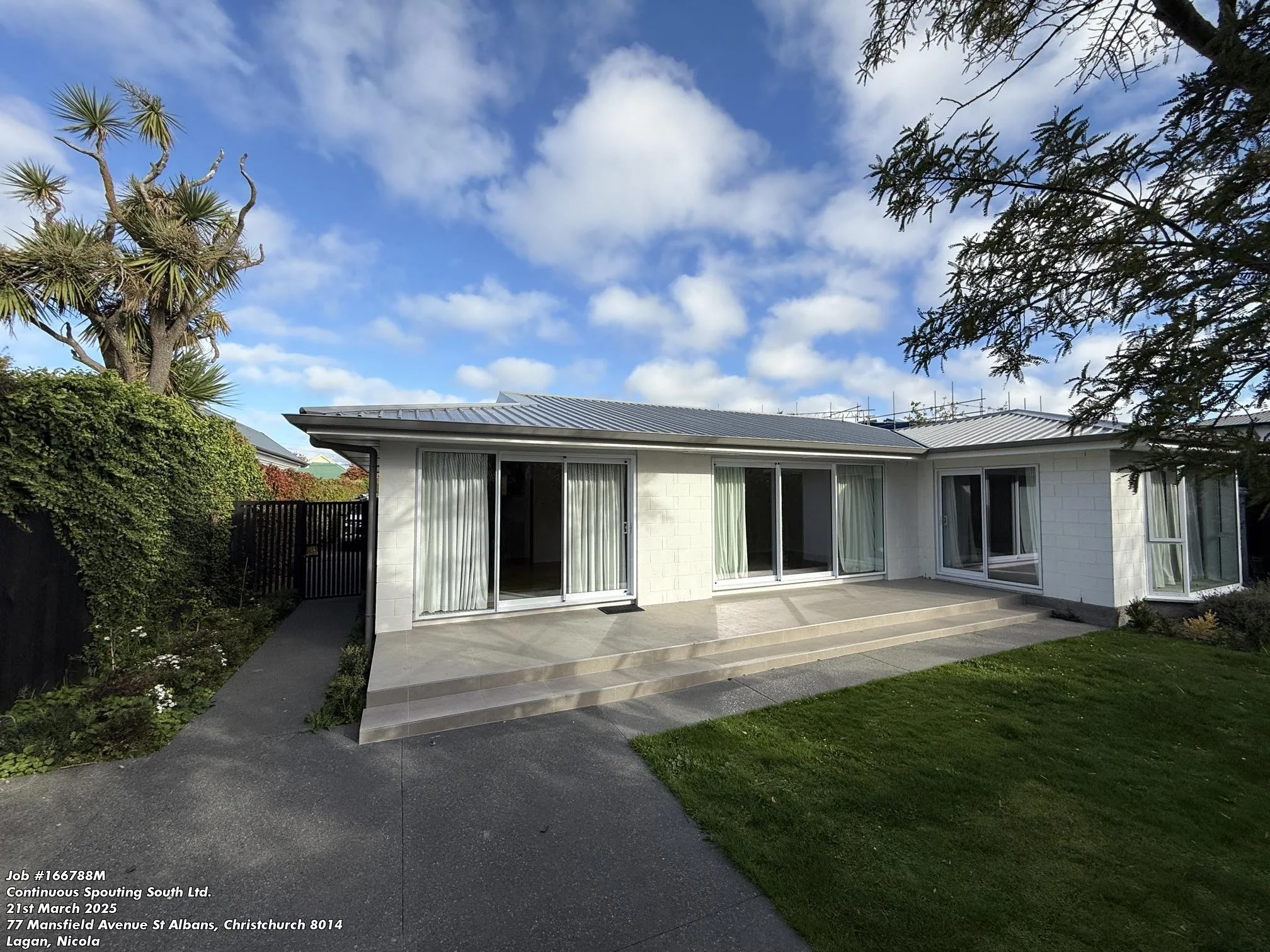

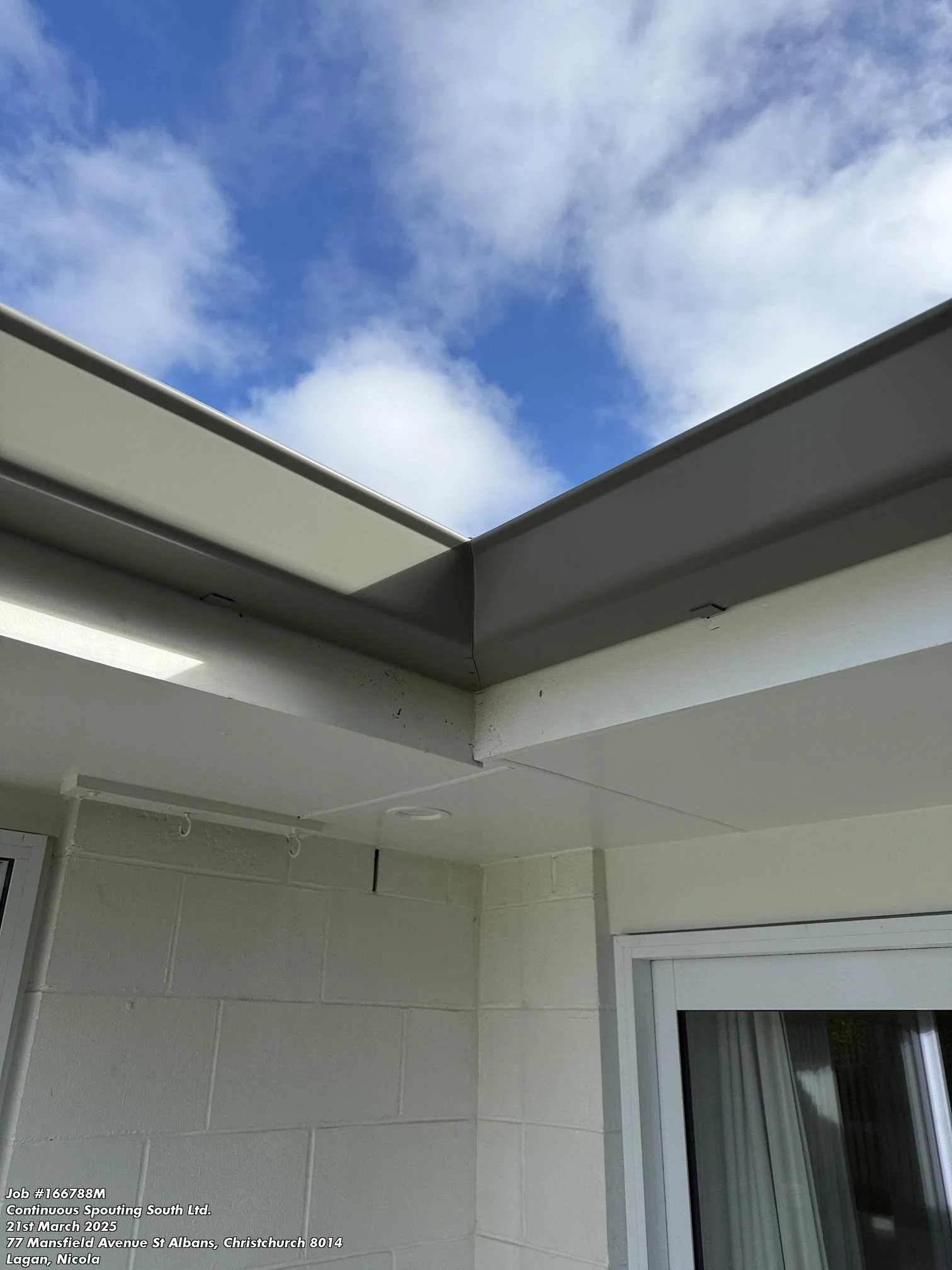

Quartz Plus - Image Gallery
Technical Information & Downloads
QUARTZ PLUS
Spouting Brochure
Click image to view and download.

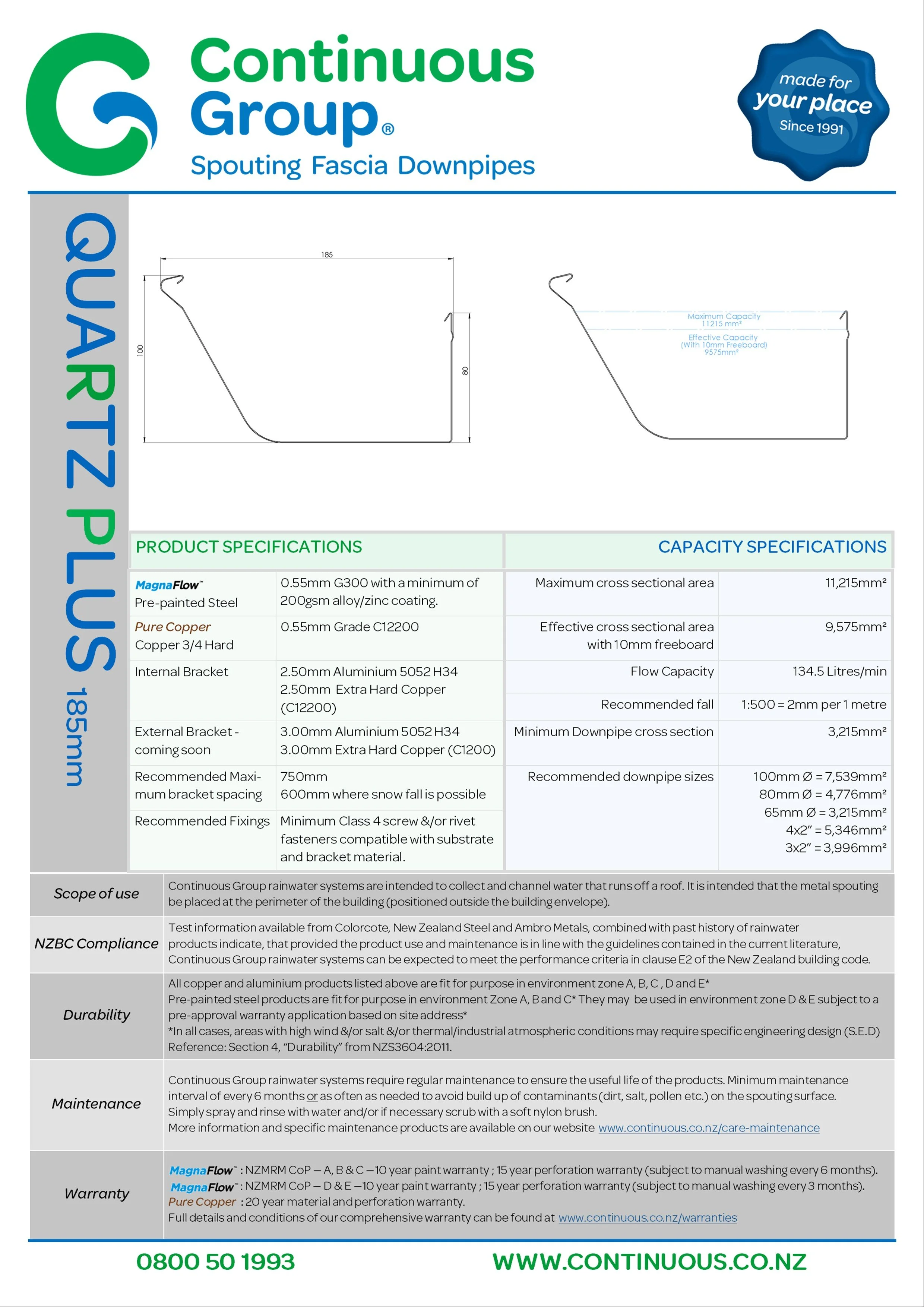

QUARTZ PLUS
Specification Sheet
Click image to view and download.
QUARTZ PLUS Combined
Brochure & Spec Sheet
Click image to view and download.
